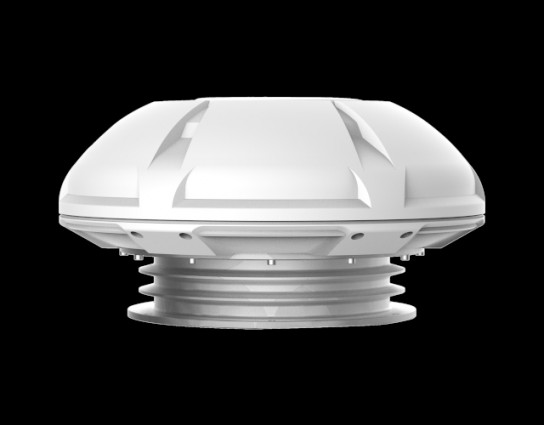

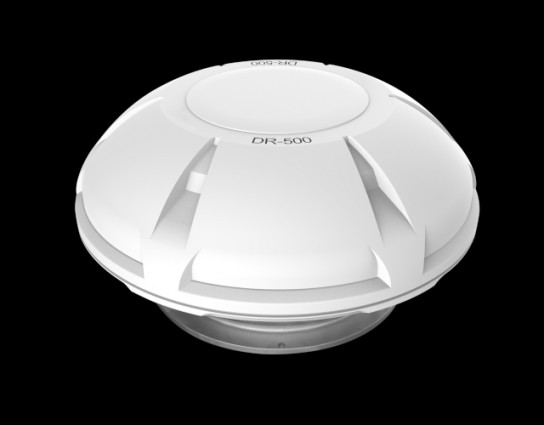

DR-500

Compact Pulse-Doppler radar for detecting moving targets in the airspace.
Protected area up to 800,000 sq.m

It is designed to detect and track small UAVs:

  • Medium (DJI Inspire type)
  • Mini (DJI Phantom type)
  • Micro (DJI Mavic type)

It can detect moving ground targets within the protected area:

  • People
  • Vehicles
  • Boats

FEATURES

  • Track update 4 times per second
  • No moving parts
    Zero maintenance cost
  • DPA function
    Increases the detection range to up to 700 m.
  • Compact size 360 х 180 mm
    Sealed housing
  • PoE+ Technology
    Single cable connection
    Quick installation
  • 24/7 protection in any weather conditions

DR-500 - General Specifications

RADAR CHARACTERISTICS

DR-500

Radar type

Pulse-Doppler, solid-state, kinematic-free

Operating frequency

Range C (5.7÷5.8 GHz)

Radar azimuth coverage, deg.

360°

Detection range (Standard / Maximum)

500 m / 700 m

Examples of detection range

DJI Phantom 4

450–500 m

DJI Mavic 2

350–500 m

Person

500 m

Simultaneously tracked targets

up to 96

Minimum SCS (scattering cross section)

0.01 m²—Drone

False alarm filter

Intellectual

Dynamic power distribution

Available

Power/data transmission

PoE+ / Ethernet

Operating temperature

−40°C to +60°C
